TRB160
Manufacturer:
TLC Electronic
Mfr.Part #:
TRB160
Datasheet:
Description:

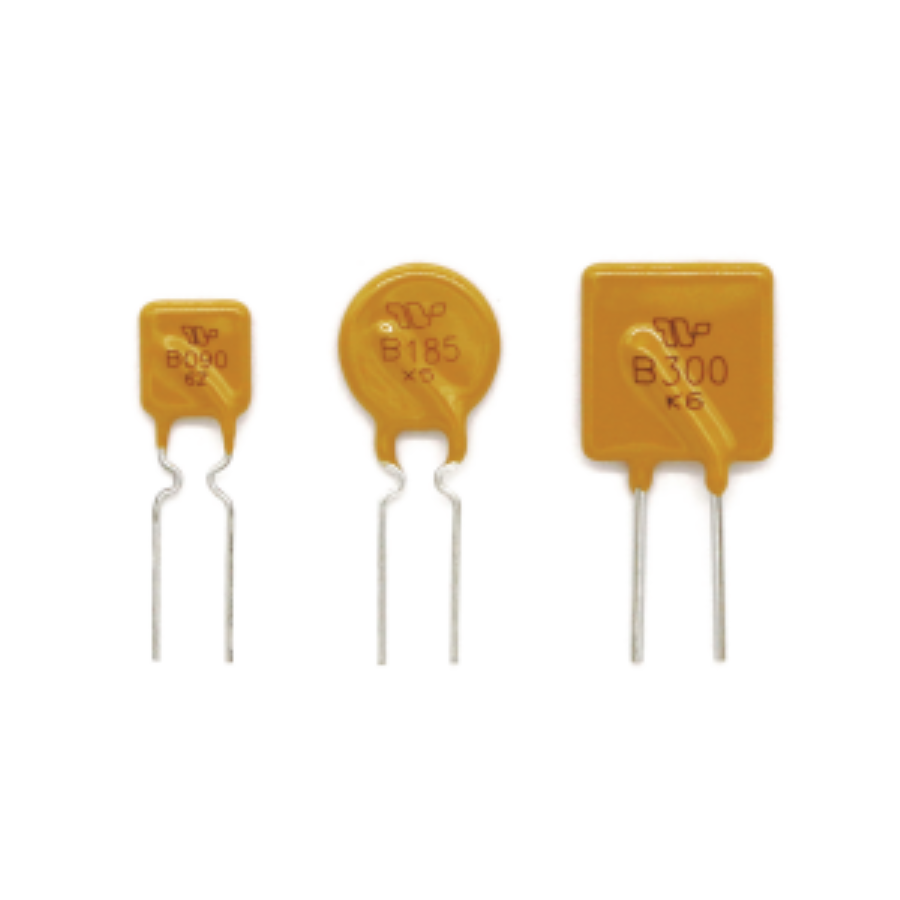

PTC Resettable Fuses Plugin Through Hole Hold Current:1.6 A Voltage Rating:30 V Trip Current:3.2 A
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 7.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bag |
| Voltage Rating | 30 V |
| Thickness | 3.1 mm |
| RoHS | Compliant |
| Max Current Rating | 40 A |
| Hold Current | 1.6 A |
| Time to Trip | 8 s |
| Trip Current | 3.2 A |
| Maximum Resistance 1 Hour (R1max) | 160 mΩ |
| Minimum Resistance Initial (Rmin) | 30 mΩ |
| Lead Spacing | 5.1 mm |
Stock: 102
Distributors
pcbx
pcbxUnit Price$0.07718
Ext.Price$0.07718
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07718 | $0.07718 |
| 10 | $0.06929 | $0.69290 |
| 50 | $0.06221 | $3.11050 |
| 100 | $0.05487 | $5.48700 |
| 500 | $0.04839 | $24.19500 |
| 1000 | $0.04268 | $42.68000 |
| 3000 | $0.03934 | $118.02000 |
| 5000 | $0.03626 | $181.30000 |
